Trommel screens GT1015

Price: $4,500.00

On Sale:$2,990.00

You save: $1,510.00! (33.56%)

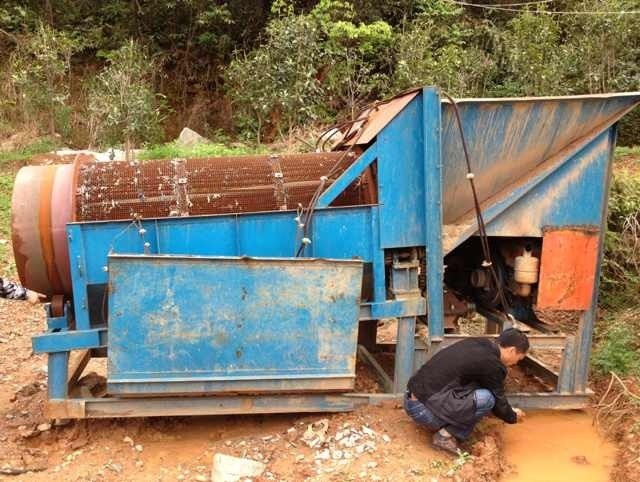

Gold ore washing plant trommel screen machine. Material feeds into the drum, washed up and moves by the rotation  down.



Description of  trommel screen
 This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Features
·  Configured for economical & efficient classification, screening and grading
·  Heavy duty trommel drum with lifters at the front to facilitate material break up
·  Screen replaceable for different mesh sizes
·  Multiple screen size
·  Easily changed screen plates
·  Largest processing capacity in the industry
·  Unique screen design, result in higher capacities, longer screen life and no material clogging
·  Heavy duty feed hopper and extension
·  Discharge chute
·  Gear drive mechanism
·  Variable speed drive mechanism

Descriptions

The gold drum screen provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.

This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etct

Technical  specification
Model Capacity(t/h) Power(kw) Drum  Diameter(mm) Drum Lenth(mm) Screen Size(mm) Dimesion(mm) Weight(kg)
GT1015 10-20 4.0 1000 1500 <3~10 3000*1400*2145 2200
GT1020 20-25 5.0 1000 2000 3460*1400*2145 2800
GT1225 25-30 7.5 1200 2500 4146*1600*2680 4200
GT1530 35-50 11 1200 3000 4460*1900*2820 5100
GT1540 50-70 15 1500 4500 5960*1900*3080 6000
GT1848 70-90 22 1800 4800 6500*2300*4000 7500
GT2055 90-120 30 2000 5500 7500*2500*4000 8600

orders can be placed on alluvialpacific@hotmail.com

phone contact +61 4 19157655



PRICE USD $2,990.00
